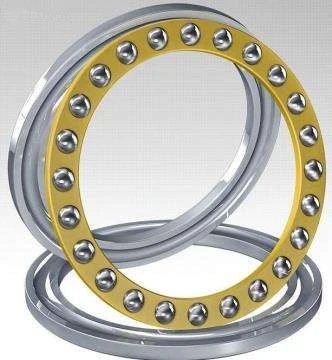

Stainless Steel/Gcr Chromium/Carbon Steel Ball Bearings 51100, 51200 Series Thrust Ball Bearings

Description on Thrust Ball Bearings:1. DescriptionThrust ball bearing is a separate bearing, the contact ball is 90°, this kind of bearing is composed of inner ring, outer ring and retainer. Single-row thrust ball bearing can carry axial load from single direction.Two-row thrust ball bearing can carry axial load fr

Featured Products

Stainless/Gcr Chrome/Carbon Steel Ball Bearing 51100, 51200 Series Thrust Ball Bearing
Stainless/Gcr Chrome/Carbon Steel Ball Bearing 51100, 51200 Series Thrust Ball Bearing
Stainless/Gcr Chrome/Carbon Steel Ball Bearing 51100, 51200 Series Thrust Ball BearingStainless/Gcr Chrome/Carbon Steel Ball Bearing 51100, 51200 Series Thrust Ball Bearing

Description on Thrust Ball Bearings:

1. Description

Thrust ball bearing is a separate bearing, the contact ball is 90°, this kind of bearing is composed of inner ring, outer ring and retainer. Single-row thrust ball bearing can carry axial load from single direction.

Two-row thrust ball bearing can carry axial load from double direction. Thrust ball bearing with spherical rings has aligning performance, which can eliminate installation error.

Thrust ball bearings are produced as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.

Thrust ball bearings are separable, i.e. the shaft washer, housing washer(s), ball and cage assembly(s) can be mounted separately. Shaft washers have a ground bore to enable an interference fit. The bore of the housing washer is turned and always larger than the shaft washer bore.


2. Structure

Single-row thrust ball bearing
Double-row thrust ball bearing
CHIK Single Direction Thrust Ball Bearings consist of two flat washers with raceways, balls and cage which are detachable. The washers have a flat seating surface therefore they have to be embedded so that all balls are equally loaded. Bearings only transfer axial loads in one direction.

3. Cage

Steel stamping cage, machine solide cage(brass) Thrust ball bearings have as standard pressed steel cage, where the material and application is not marked. Larger size bearings use massive brass cage to offer more robust solutions.

4. Features

CHIK thrust ball bearings are design to accommodate large axial load, however they must not be subjected to radial load. Most frequent bearings are single direction thrust ball bearings. During operation these bearings must be constantly subjected to a specific axial load. These bearings can be also combined with spherical rings to cope with small initial misalignments.



ISODimensions (mm)Basic Load Rating (N)Limitting speed ( r/min )Weight
Lubrication
 dDBDyn. CStat. C0GreaseOil
51100102491000014000700095000.02
51101122691040015300670090000.022
51102152891060016600630085000.023
51103173091140019600630085000.025
511042035101270020800560075000.038
511052542111590029000480063000.056
511063047111680033500450060000.063
511073552121740037500430056000.08
511084060132340050000380050000.12
511094565142420057000340045000.14
511105070142550063000320043000.16
511115578163070078000280038000.247
511126085173640093000260036000.33
511136590183710098000240034000.359
5111470951837700104000240034000.385
51115751001944200137000220032000.4
51116801051944900140000200030000.42
51117851101946200150000200030000.44
51118901202259200190000180026000.67
511201001352585200270000170024000.97
511221101452587100290000160022001.05
511241201552588400310000160022001.15
5112613017030111000390000140019001.85
5112814018031112000400000130018002.05
5113015019031112000400000120017002.2
5113216020031112000425000120017002.35
5113417021534133000500000110016003.3
5113618022534135000530000100015003.5
511381902403717200065500095014004.05
511402002503717400065500095014004.25
511442202703717800073500090013004.6
511482403004523400096500080011007.55
5115226032045238000102000080011008.1
5115628035053319000146000070095012
5116030038062364000176000063085017.5
5116432040063371000186000060080019
5116834042064377000196000060080020
5117236044065390000200000056075021.8
5117638046065398000218000055075022.75
5118040048065403000225000052072024
ISODimensions (mm)Basic Load Rating (N)Limitting speed ( r/min )Weight
Lubrication
 dDBDyn. CStat. C0GreaseOil
512001026111270017000600080000.031
512011228111330019000600080000.034
512021532121650025000530070000.046
512031735121720027500500067000.053
512042040142250037500450060000.083
512052547152550047500400053000.11
512063052162670050000360048000.13
512073562183510067000300040000.22
512084068194680098000280038000.28
512094573203900080000260036000.3
5121050782249400106000240034000.37
5121155902561800134000190028000.59
5121260952662400140000190028000.65
51213651002763700150000180026000.78
51214701052765000160000180026000.79
51215751102767600170000170024000.83
51216801152876100190000170024000.91
51217851253197500250000160022001.2
512189013535119000300000150020001.7
5122010015038124000320000130018002.2
5122211016038130000360000120017002.4
5122412017039140000400000110016002.65
512261301904518600054000095014004
512281402004619000057000095014004.35
512301502155023800073500090013006.1
512321602255124200078000085012006.55
512341702405528600093000080011008.15
5123618025056296000100000080011008.6
51238190270623320001160000750100011.7
51240200280623380001220000750100012
5124422030063351000132000070095013
5124824030045462000198000060080023
5125226036079470000210000056078025.2
5125628038080492000232000055075026.5


5. Application

Machine spindle, worktable of vertical lathe, auto steering mechanism, Fluid control valves
Machine tool tables and spindles
Oil and gas rotary tables
Screw Jacks

6. Product Details:

Structure: Thrust ball bearing
Precision level: P0-P6
Vibration: V1-V3
Seal type: U U/T
Number of row: Single row
Cage material: Brass, steel, nylon
Double pressed cage.


Bearing code: 29320
Type: Thrust Roller Bearing
Cage: Brass/Steel/Nylon
Material: Carbon steel/stainless steel/chrome steel
Standard: ISO9001
Precision: P6/P5/P4/P2/P0
Clearance: C3/C4
Noise: Low noise
Speed: High speed
Life: 2-3 years


7. Advantages:

(1) Fast delivery
(2)  Long working life
(3) Perfect compensation system
(4) Competitive price and high quality
(5) Different famous brand
(6) Flexible payment term
(7) Good and instant after market service
(8) Much experience of trade business


8.Our Company

Stainless/Gcr Chrome/Carbon Steel Ball Bearing 51100, 51200 Series Thrust Ball Bearing
Stainless/Gcr Chrome/Carbon Steel Ball Bearing 51100, 51200 Series Thrust Ball Bearing
Stainless/Gcr Chrome/Carbon Steel Ball Bearing 51100, 51200 Series Thrust Ball Bearing
Stainless/Gcr Chrome/Carbon Steel Ball Bearing 51100, 51200 Series Thrust Ball Bearing
Stainless/Gcr Chrome/Carbon Steel Ball Bearing 51100, 51200 Series Thrust Ball Bearing

As a comprehensive industrial enterprise that integrates R & D and sales services, with over 20 years' experience, especially the guaranteed supplier of China Manufacturing Network, our factory covers an area of 10,000 square meters, which enables very quick delivery.

Owning the most advanced CNC automatic production line, automatic assembly line, and a varied of testing equipment, our bearings mainly cover SKF, NSK, NTN, KOYO, TIMKEN, NACHI, THK etc., which meets all low noise, low vibration, low friction, high precision, high sealed, high turning speed and long life requests.
