Bicycle Parts Bicycle Steel Ball, Bearing Steel Ball, Steel Shot

Product information:Casehardened surface balls and low hardness core. Good characteristics of superficial hardness, low resistance to corrosive attack, magnetic. Low carbon steel ball1. MaterialAISI1010/ AISI1015/ C15/ 1.0413/ JIS SWRM 12/ EN32 ASTM A/292. Size Range1mm-180mm3. GradeG40-10004. Hardness60 min. HRC (Surface-h

Featured Products

Product information:
Casehardened surface balls and low hardness core. Good characteristics of superficial hardness, low resistance to corrosive attack, magnetic.

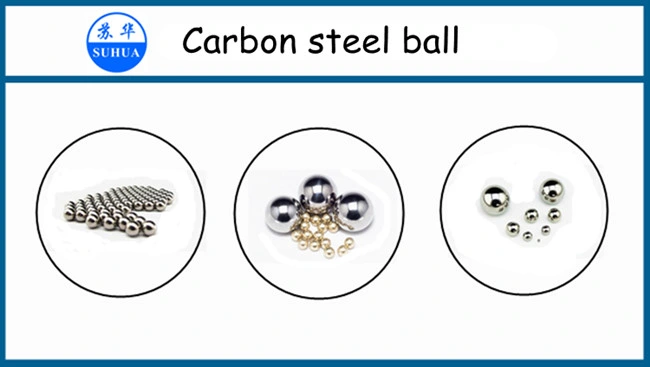

Low carbon steel ball
1. MaterialAISI1010/ AISI1015/ C15/ 1.0413/ JIS SWRM 12/ EN32 ASTM A/29
2. Size Range1mm-180mm
3. GradeG40-1000
4. Hardness60 min. HRC (Surface-hardend)
5. Characteristic(a)Casehardened surface balls and low hardness core
(b)superficial hardness
(c)Low resistance to corrosive attack
6. MagneticYes
7. ApplicationLow quality bearing, oiler, roller, sliding block…
8. Chemical composition
 C%Si%Mn%Cr%Ni%Mo%P%S%Al%Cu%
min.0.12---0.30---------------------
max.0.170.300.600.200.250.050.0350.0350.010.30
9.PackingStandard: 10kg or 20kg per carton,1 ton per pallet or as customer required
10.Conditioningdry or oiled
11.Delivery timeStock within a short time or 35 days.
CHANGZHOU HUARI STEEL BALL CO., LTD.
Bicycle Part Bicycle Steel Balls, Bearing Balls, Steel Shot
Bicycle Part Bicycle Steel Balls, Bearing Balls, Steel Shot


CERTIFICATE
ISO,BV,SGS,TS16949

Equipment&Process
Manufacture process of steel balls
Step 1 HeadingBalls blanks are cold headed from rolls of wire.
Step 2 FlashingRolling balls between two hard alloy plates to removes the slight band
and small protrusions.
Step 3 Heat treatHeating balls to a high temperature in furnace and quenching balls in a liquid bath.
Step 4 Rough grindRolling balls between the face of a fixed iron plate and a very hard fire-grit grinding wheel. Then rolled the hardened ground balls between two cast iron plates.
Step 5 CleaningThe final production operation cleans the finished balls and adds a shiny luster.
Step 6 Final
          Inspection
Balls are gauged, visually inspected and subjected to other quality tests to insure
every customer's specifications are achieved.
Step 7 PackagingThe balls are packaged in accordance with customer specifications for shipping.
Bicycle Part Bicycle Steel Balls, Bearing Balls, Steel Shot

PACKAGING
Type 1 : Plastic bag + box + carton + wooden pallet
Type 2 : Plastic bag + carton + wooden pallet
Type 3 : Our package :export cartons, steel drums, wooden pallets
Bicycle Part Bicycle Steel Balls, Bearing Balls, Steel Shot

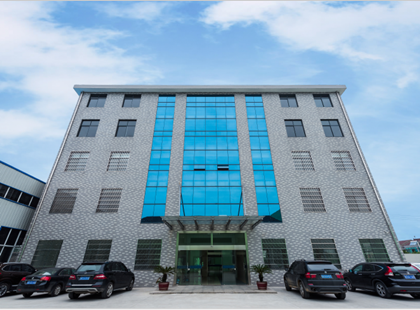

FACTORY

1. Established since year 1986, more than 27 years experience and specialized in steel balls manufacturer
and ball related products.
2. High precision instruments and technical staffs.
3. Offer the good quality service and product with short delivery times.
 Bicycle Part Bicycle Steel Balls, Bearing Balls, Steel Shot

Bicycle Part Bicycle Steel Balls, Bearing Balls, Steel Shot
SEVERICE

1. All the inquiries will be reply within 24 hours
2. For the steel ball, please kindly let us know the size, material, grade and quantity.
3. For the bearing, please kindly let us know bearing type, material, Accuracy Grade/Class, and quantity.

Faq

1.What kind of steel balls can supply by huari steel ball Co., Ltd.?
MaterialCarbon, chrome, stainless, aluminium, copper, brass and so on.
Size range0.8mm-150mm
GradeG10-1000
PackingStandard or as customer required
DeliveryStock within a short time or 35 days

2.Some other question?

Q1.-- if 'I' want small quantity and fast delivery.Which way of shipping is advised ?
A1.-- by express.
Q2.-- how many quantity will be packed in one carton or one pallet ?
A2.-- 20 to 25kg per carton,1 ton per wooden pallet.
Q3.-- what's the lead time ?
A3.-- if in stocks,2-5days;Or ,it will take 20-35days,depend on the quantity.
Q4.--which kind of payment will be accepted ?
A4.-- T/T, west union, L/C, ...

Why choose us

1.100% guarantee for our quality.
2.Our products have BV and ISO certificate.
3.Professional manufacturer with 30years experience.
4.Our steel balls and bearings are sold all over the world.
5.Have advanced production equipment, to ensure that each step excelsior.
6.Tseting equipment to ensure that every steel ball is inspected under serious quality standard.
7.Strong packing ensure the goods delivered to customers in good condition.
8.Professional export sales and service team. To make sure that your purchase under comfortable way.


Any futher query, please do contact us anytime.
