20mm 10mm Chrome Bearing Ball for Car/Auto/Axle BearingsSteel Ball Introduction:We are a specialized company in processing ball, with the independent export rights, strong technical force and product development and production ability. We own produce the G2000, G1000, G500, G200, G200, G100, G60, G28, G20, G16, G10, G5, G3. the

Featured Products

20mm 10mm Chrome Bearing Ball for Car/Auto/Axle Bearings

20mm 10mm Chrome Bearing Ball for Car/Auto/Axle Bearings

20mm 10mm Chrome Bearing Ball for Car/Auto/Axle Bearings

Steel Ball Introduction:
We are a specialized company in processing ball, with the independent export rights, strong technical force and product development and production ability. We own produce the G2000, G1000, G500, G200, G200, G100, G60, G28, G20, G16, G10, G5, G3. the specifications are from the range 0.45mm to 50mm for many types of Bearing steel, Stainless steel, Carbon steel, etc.

Part of Steel Ball Grade
GB/T 308.1-2013&ISO3290-1:2008 STANDARD
GRADEVDWS(max)△Sph(max)VDWL(max)Ra(max)Spacing Gauge ValuePriority Gauge ValueSpacing Dividers Gauge ValueDividers Gauge Value
μm
G30.080.080.130.010.5-5,...,0.5,0,+0.5,...,+50.1-0.2,-0.1,0,+0.1,+0.2
G50.130.130.250.0141-5,...,-1,0,+1,...+50.2-0.4,-0.2,0,+0.2,+0.4
G100.250.250.50.021-9,...,-1,0,+1,...,+90.2-0.4,-0.2,0,+0.2,+0.4
G160.40.40.80.0252-10,...,-2,0,+2,...,+100.4-0.8,-0.4,0,+0.4,+0.8
G200.50.510.0322-10,...,-2,0,+2,...,+100.4-0.8,-0.4,0,+0.4,+0.8
G240.60.61.20.042-12,...,-2,0,+2,...,+120.4-0.8,-0.4,0,+0.4,+0.8
G280.70.71.40.052-12,...,-2,0,+2,...,+120.4-0.8,-0.4,0,+0.4,+0.8
G401120.064-16,...,-4,0,+4,...,+160.8-1.6,-0.8,0,+0.8,+1.6
G601.51.530.086-18,...,-6,0,+6,...,+181.2-2.4,-1.2,0,+1.2,+2.4
G1002.52.550.110-40,...,-10,0,+10,...,+402-4,-2,0,+2,+4
G20055100.1515-60,...,-15,0,+15,...,+603-6,-3,0,+3,+6

Composition of different materials
MaterialComposition of materials
C(%)Si(%)Mn(%)P(%)S(%)Ni(%)Cr(%)Mo(%)Cu(%)
100Cr6&SUJ2
&AISIE52100
&GCr15
0.98-1.050.15-0.350.25-0.450.02max0.006max0.11.40-1.650.05max0.13
Ti(%)AI(%)O(%)N(%)Pb(%)Sb(%)As(%)Sn(%)Ca(%)
0.002max0.04max0.0008max0.004max0.002max0.005max0.04max0.03max0.0008max
AISI440C0.95-1.100.80max0.80max0.035max0.030max0.30max16.00-18.000.40-0.700.25
AISI420C0.15-0.361.00max1.00max0.040max0.030max1.00max12-14-0.30max
AISI3040.08max1.00max2.00max0.045max0.030max8-1018-20--
AISI3160.08max1.00max2.00max0.045max0.030max10-1416-182-3-



20mm 10mm Chrome Bearing Ball for Car/Auto/Axle Bearings

20mm 10mm Chrome Bearing Ball for Car/Auto/Axle Bearings



Production process

20mm 10mm Chrome Bearing Ball for Car/Auto/Axle Bearings

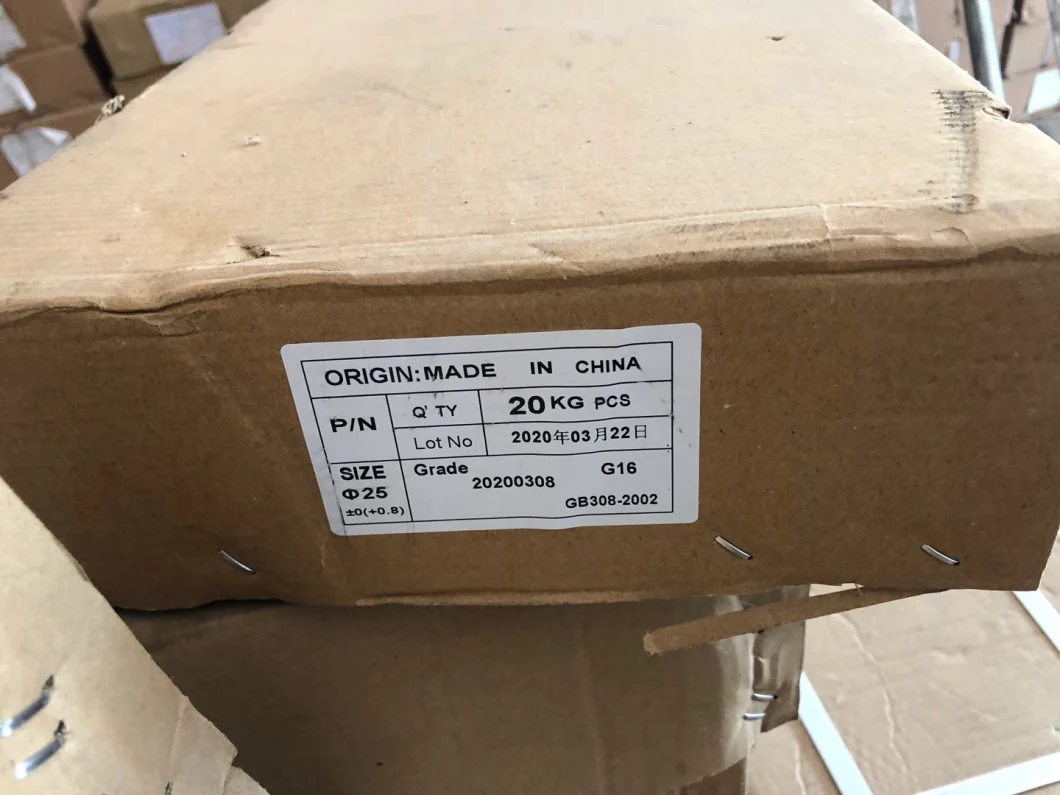

Packaging
20mm 10mm Chrome Bearing Ball for Car/Auto/Axle Bearings
20mm 10mm Chrome Bearing Ball for Car/Auto/Axle Bearings
20mm 10mm Chrome Bearing Ball for Car/Auto/Axle Bearings

1. Plastic bag+box+carton+wooden pallet
2. Plastic bag+carton+wooden pallet
3. Export cartons+steel drums+wooden pallets

Why choose us
1,Sample free .
2,Passed IATF, ISO, SGS, OHSAS certification .
3,Professional factory , Since 1988.
4,Occupies 70 hectares.
5,We have good development and supply capacity.
